Saturday, August 21, 2010

The Construction Set

This has been about two years in the making.  I downloaded three of the plans from the Internet.  They were free and here is the link. Later I purchased the Reader Digest book of wooden toy plans.  It had he road grader and the larger bob tail truck.  Then My wife purchased Norm Marshshall's book of Wooden Toys.  This had the bulldozer and the tanker.  So I just finished those two pieces.  There is a Crane but I need to catch up on current projects.  I feel bad because there are people waiting for projects, some I still have to design.
The Bulldozer

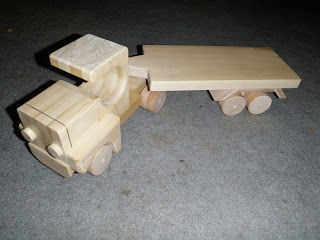

Cab-over with low trailer
Simi with Trailer
Road Grader
Tanker truck

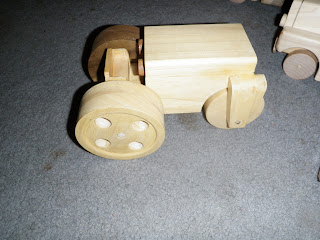

Steam Roller
Most of these are made out of Poplar.  It was cheap and clear.  However the bulldozer engine is out of a maple foot.  It was a project I was working on at work and it was a failed first article so I took the decorative profile off and squared it up.  Over all it looks pretty good.
Slow down the speed of the drill press when drilling large diameter holes.  The first two trucks were made while I was taking a wood working class.  They had a 2 1/2" forstner bit that cut through wood like butter.  I don't have that tool because I would not use it very much and they are a little pricey.  I had to use a hole saw(it can also make wheels).  I tend to burn wood when using a hole saw.  I took some advice and slowed the speed down and did not try to cut the hole in 2.4 seconds.  It was a little rougher then the other bit but it did the job.
Don't try to carry too many things at once.  I was putting all the parts back into my car to take home after some time at my parents.  I accidentally dropped the tanker truck cab and the top broke into 5 pieces.  With a little glue and sanding it all worked out.  I was lucky this time
Look at previous items made in the series.  If you look at the engine for the tanker tuck and the other two you will notice that the head lights are different sizes.  The tanker has 3/8" dowels for lights and the other two have 3/4" dowel for lights.  It was a combination of not reading the drawing completely and not having going back and looking at the other trucks in the series.
